VIBRATION TESTING FIXTURE DESIGN
Including finite element analysis, fabrication, test and data correlation.
One of our greatest asset is finding solutions to challenging test requirements.
Vibration testing fixture is a very important component which determine the accuracy of vibration testing.
To help customers optimize product designs and address tough engineering challenges we offer complete vibration testing fixture design process including finite element analysis, fabrication, test and data correlation.
Analysis & Design

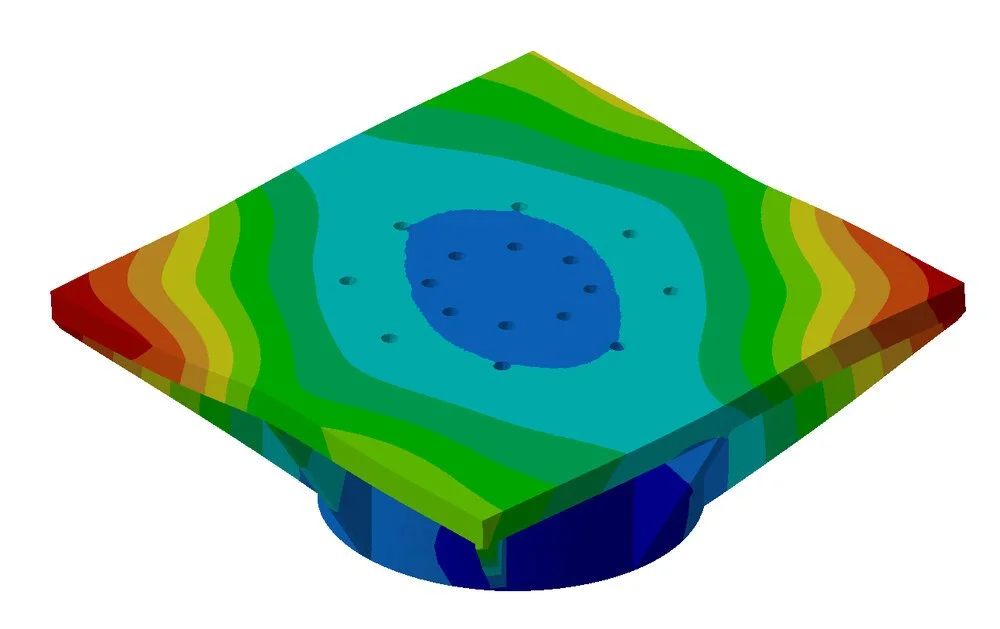

The measurement and analysis of stress and vibration is a cost-effective, non-destructive method of evaluating machinery conditions and diagnosing the possible development of failure conditions. We use the powerful Finite Element Analysis tool Simulation Professional to streamline all fixture designs, which helps make our fixtures efficient and cost-effective.
-
3.5 x 3.5 m HE with 16 Ton Load Support and Guidance System
-
Cube Fixture for Semiconductors
-
Cube Fixture for Components Testing
-
Special Test Jig for Vehicle Alternator Type-2
-
Special Dual Shaker Coupling Test Jig
-

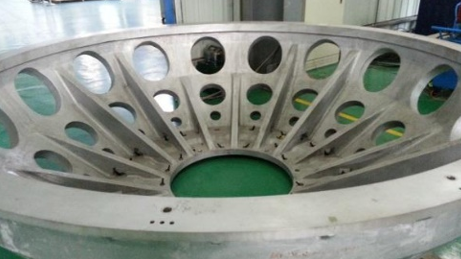

Test Rig for Satellite Dish
-
Test Jig for Shaft Coupling
-
Test Jig for Exhaust Manifold
How Can We Help You?
Interested in our vibration testing fixture design?
Send us your inquiry via the Fixture Design Form and we will be pleased to help you.
