EMC Chambers
EMC chambers are needed to examine the electromagnetic interaction between electrical devices and their environment in a neutral, stable and comparable setting. The EMC chamber prevents the penetration or the unwanted reflection of electromagnetic interference radiation. Test engineers use EMC chambers to measure how electrical systems emit high-frequency radiation, or they examine how a system behaves when it is exposed to interference radiation.
An EMC chamber must unequivocally prevent interference radiation in the long term. An EMC chamber system can only work if every single component functions reliably and all components are correctly aligned. Even the smallest mistakes like an incorrectly introduced cable or faulty door seals can allow interference radiation to enter the chamber and thus render it useless.
We are familiar with the particular requirements of various industries and will design your room precisely as it is needed. Our rigorous quality management system ensures the quality of the installed components, as well as the project workflow and installation itself
Absorbing Material

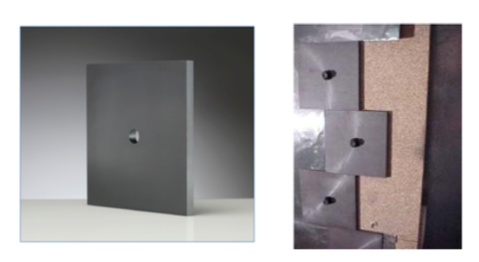

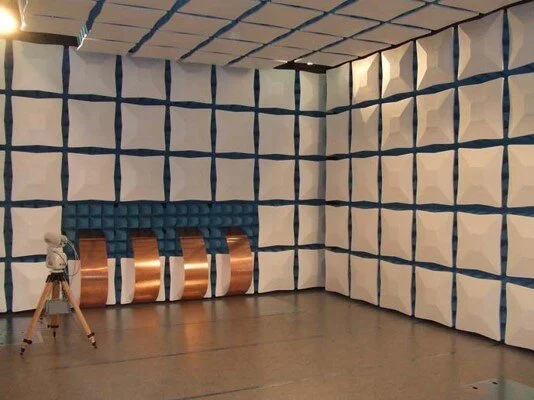

The five walls of the chamber are all covered with ferrite and cusp foam absorbing materials. The sharp absorbing materials are light blue, that is, the composite absorbing materials are laid to meet the test requirements of CISPR25 anechoic chamber.
Shielding Door and Gate

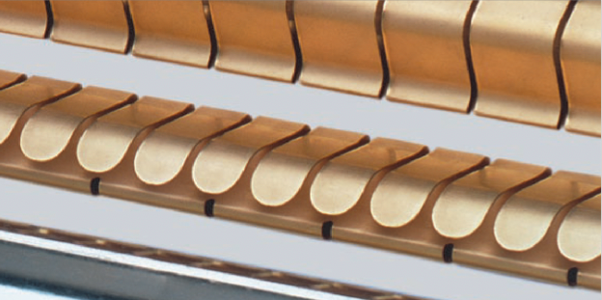

The shielding door is composed of a metal frame, a contact door spring and a main door leaf, and the door can be self-cleaned by opening and closing the door.
Rate Table

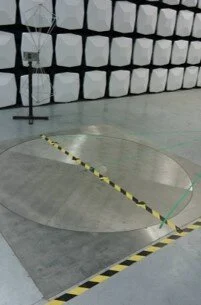

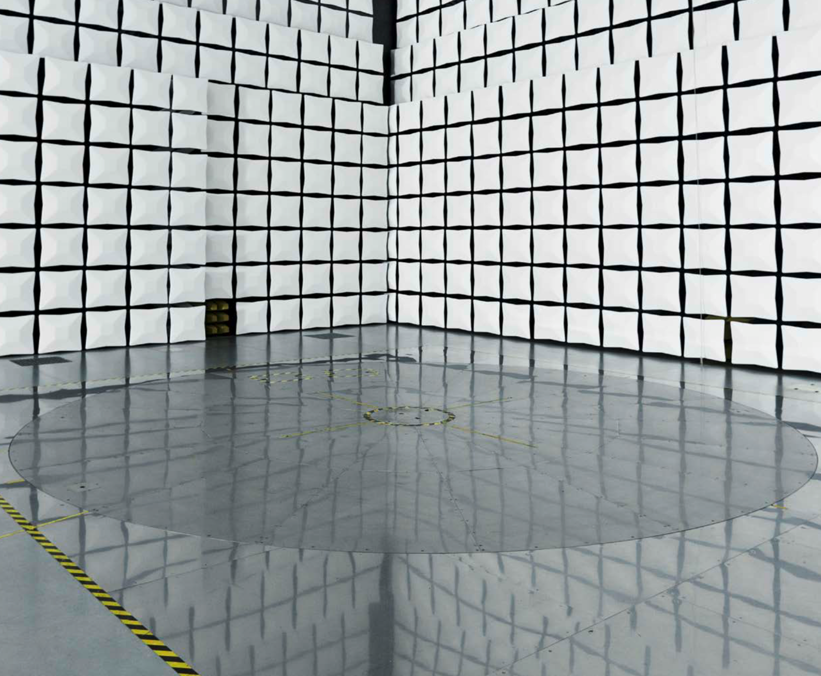

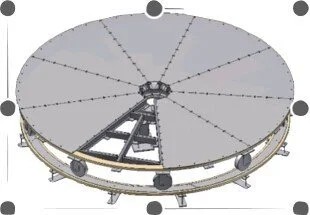

Rate table for specimen rotation, diameter 2.0 m controller by the controller in the control room. Max Payload 1000Kg. Equipped with a hard limit protection switch, when the rate table has passed a certain angle, it can be hardly stopped to protect the EUT and the power line. Normally the rate table can withstand continuous 200V/m field strength.
Finishing of Control Room and Amplifier Room
Accessories
Clean room lights
CCTV system

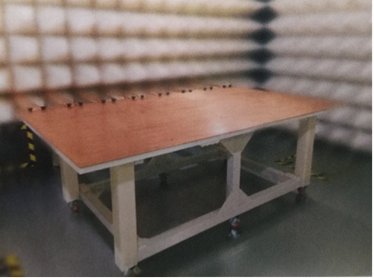

MIL-STD-461E test table
Feed-through I/O penetration panel for fiber- optics
Fire alarm system

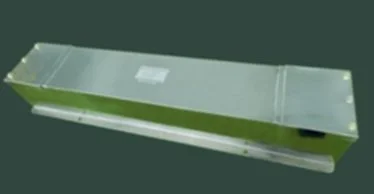

Power line filters (AC), Analog filters (telephone/fax)
Antenna Tower

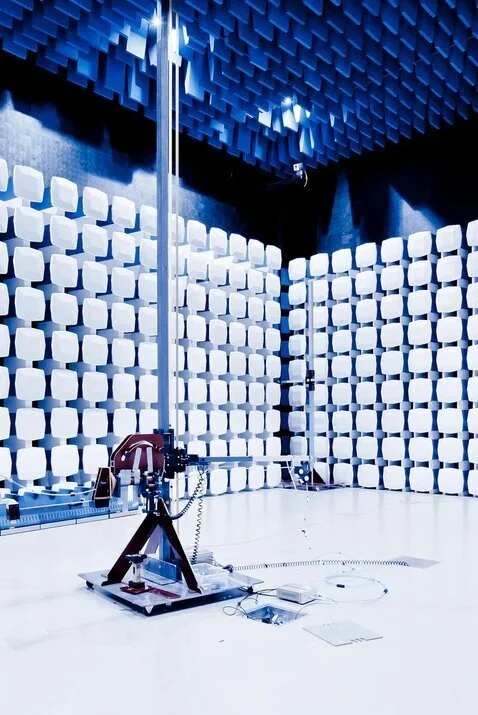

The TMC antenna comply with ANSI C63.4 and CISPR 16-1-4 and includes an advanced tilt function. To offer full flexibility, the tilt function can be switched off, so that the antenna can operate as a standard tower. Within the tilt function, the TMC software automatically calculates the tilt angle in accordance with the antenna specific reference point, as well as distance, position and size of the EUT and monitors the complete test procedure.
